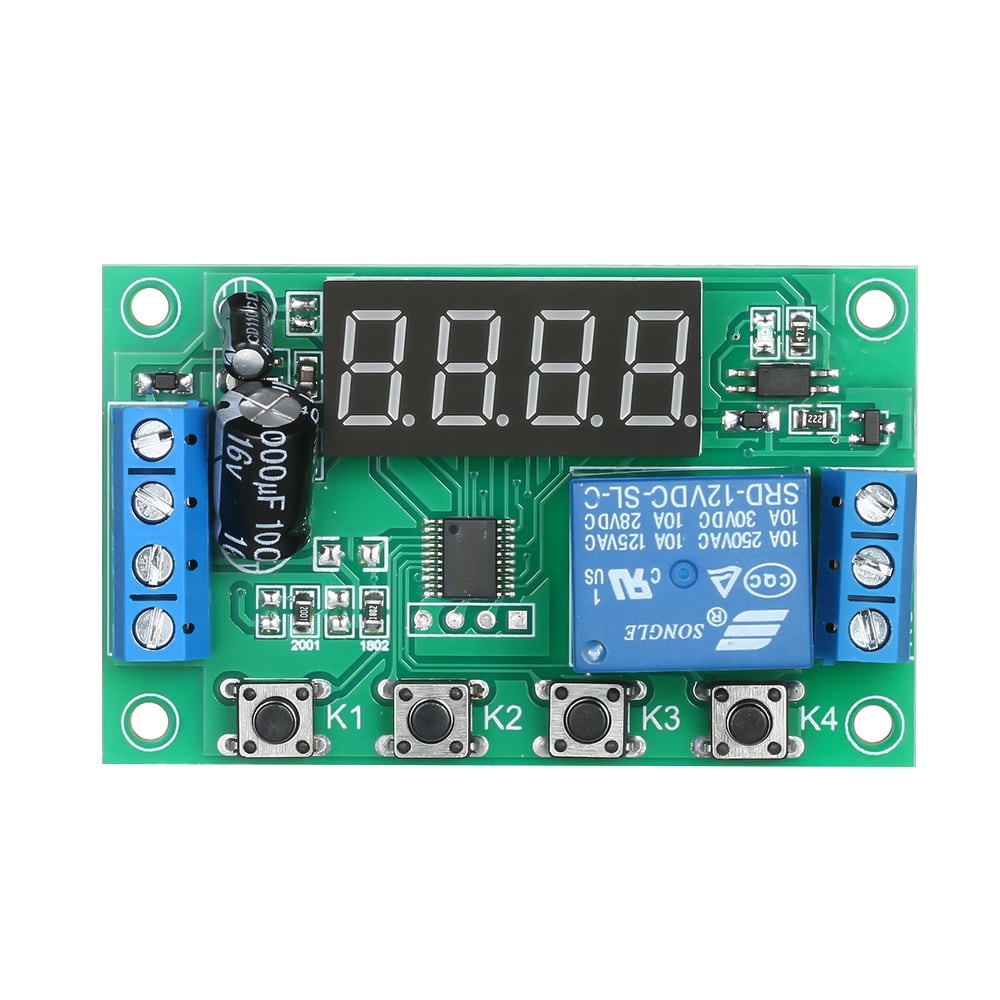

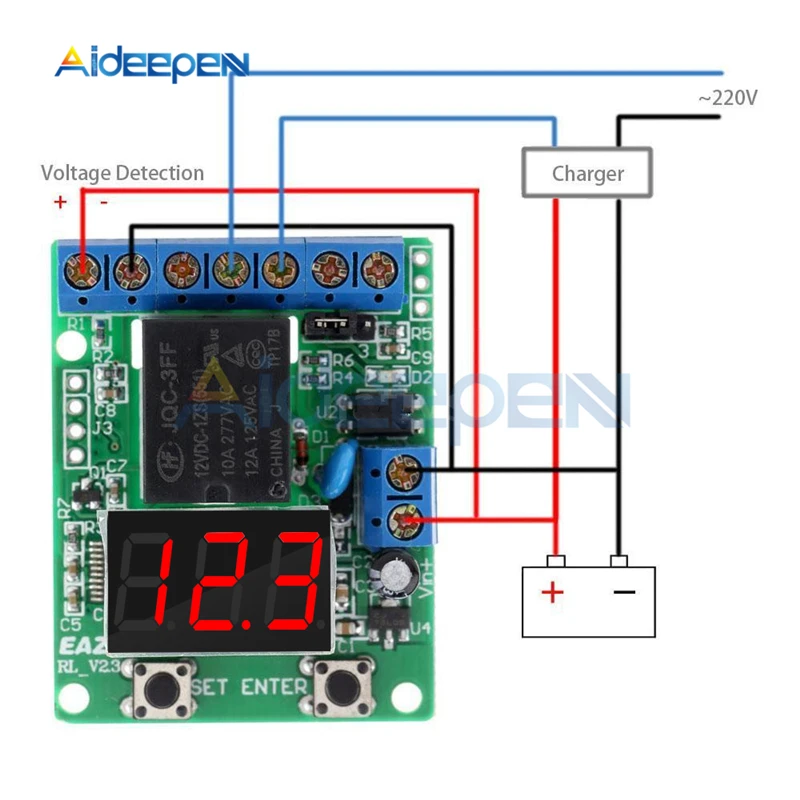

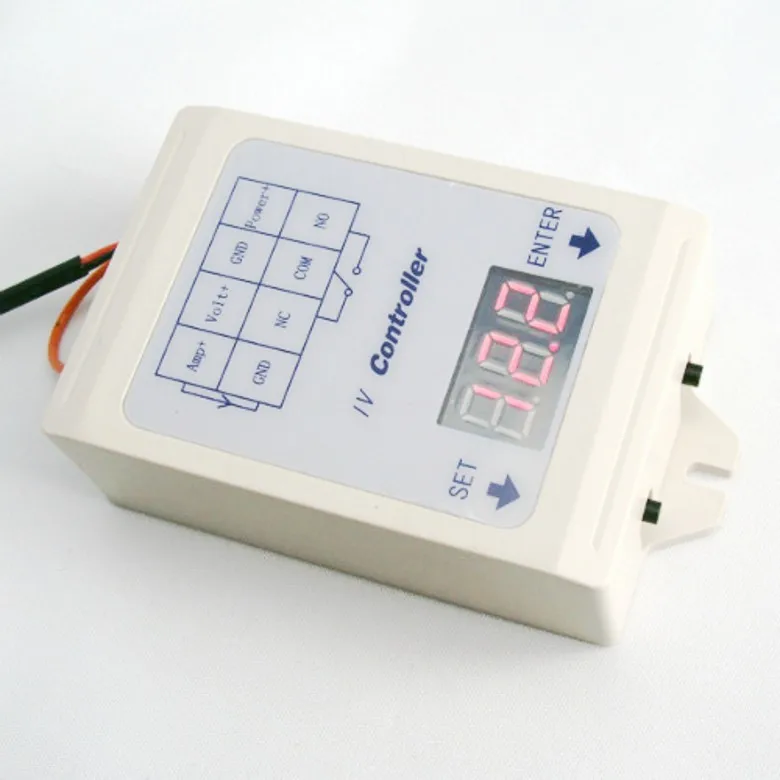

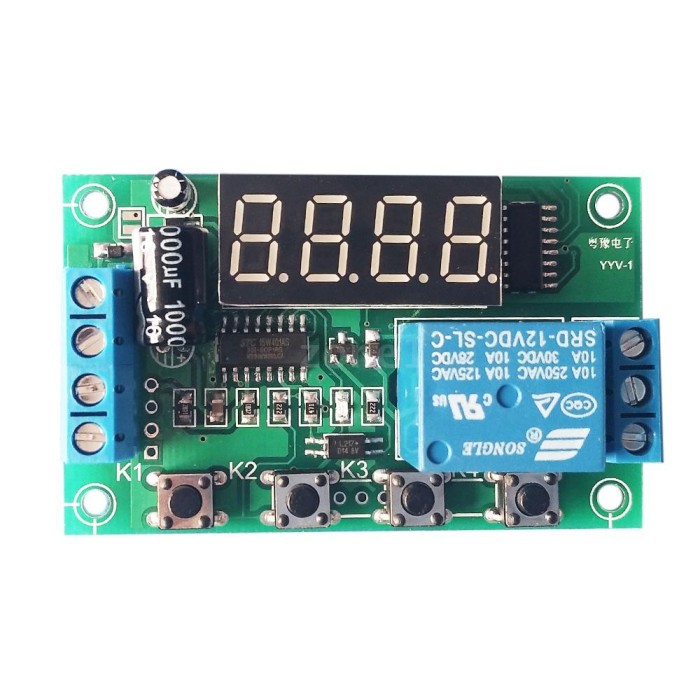

How To Test Relay Switch : How To Test A Relay For Exagerated Specs / These test switches comply with ansi/iec 60529 and have an ip20 rating.. 5 pin relay 5 pin relays provide 2 pins (85 & 86) to control the coil and 3 pins (30, 87 & 87a) which switch power between two circuits. A normally closed relay will switch power off for a circuit when the coil is activated. Test relay switch pull the female wire connector off the male terminal on the side of the relay switch. Automotive relays are used extensively in cars and trucks. Make sure to disconnect the supply of gas from gas appliances.
Test the relay's voltage at the switch. The bulb will now illuminate when the relay is use, and will go out to signal a failure. Pull it from the terminal box, disconnecting the two female. In the relay copper coil and the iron core acts as electromagnet. How to test relay any relay voltmeter:

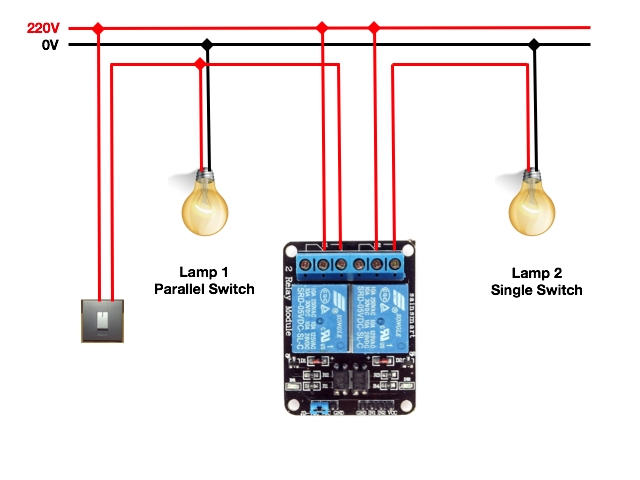

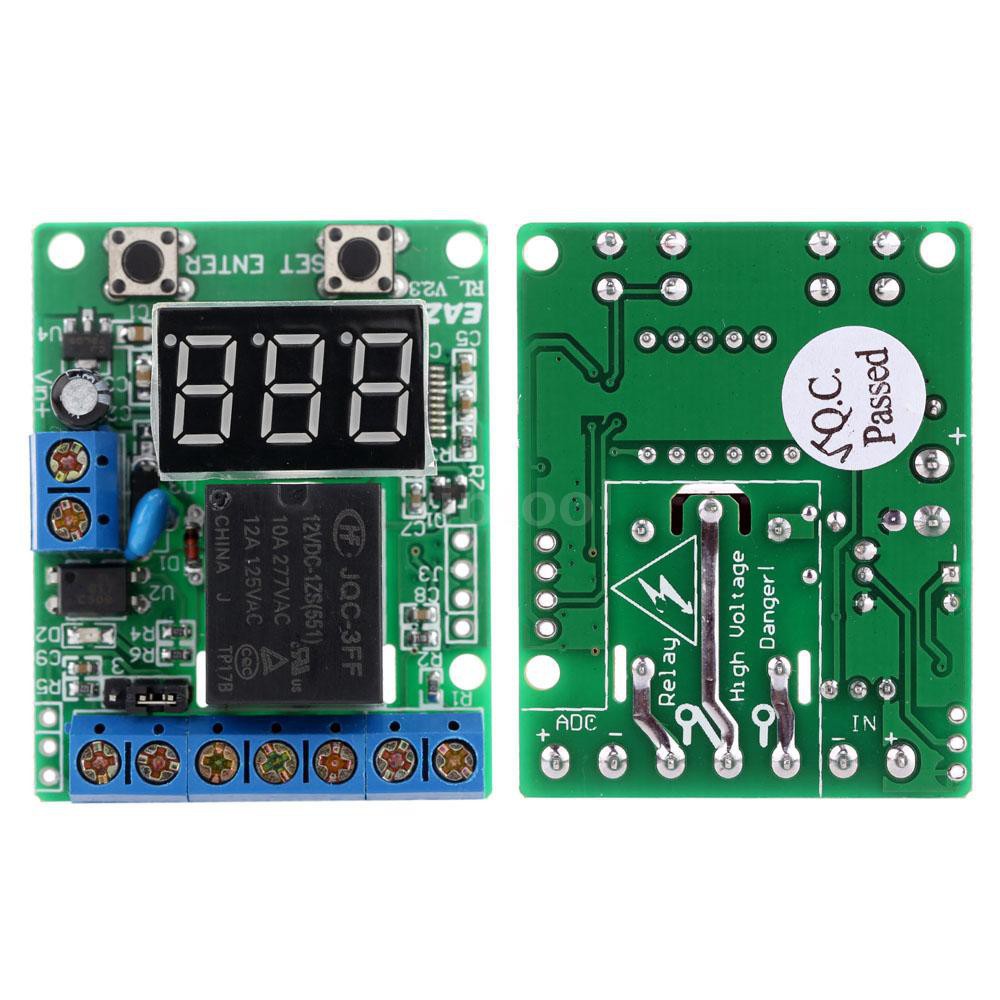

On The Drawing Board Relay Contact Bounce Test from 3.bp.blogspot.com Pull it from the terminal box, disconnecting the two female. Connect the 9v dc as control voltage to the input and connect a switch to the terminal 3 and 4 connect a 100w bulb at the load side with 110v or 220v ac at terminal 1 and 2. 5 pin relay 5 pin relays provide 2 pins (85 & 86) to control the coil and 3 pins (30, 87 & 87a) which switch power between two circuits. With the relay in any position, check if there is continuity between terminals 1 and 2 of the relay. If your switch featured two wires, touch one probe of your tester to each terminal. You will need a 12v power supply or ca. As you connect the second jumper wire on the relay, you should hear the contacts (switch) in the power circuit of the relay make a clicking sound as they close. There are new relay test switch designs on the market that are safer to operate and pose significantly less risk to the technicians who will be required to operate them.
The relay should not be tested while it is connected to the circuit.
The relay has one thick cable coming from the positive (+) pole of the battery. Bench testing the ford 4 or 5 pin relay is not hard to do at all, and in this article i'll show you how to do it (there are two articles in site about bench testing a ford relay, you can find the other here: Set the tester to zero. With the relay removed from the fuse box, the multimeter set to measure dc voltage and the switch in the cab activated, first check to see if there are 12 volts at the 85 position in the fuse box where the relay plugs in (or wherever the relay is located). If the sound is a single strong click, you should check the starter relay for voltage drop. Use a circuit tester to check whether current is reaching the relay. A second thick cable goes from the relay to the component. 5 pin relay 5 pin relays provide 2 pins (85 & 86) to control the coil and 3 pins (30, 87 & 87a) which switch power between two circuits. As you connect the second jumper wire on the relay, you should hear the contacts (switch) in the power circuit of the relay make a clicking sound as they close. Use your fingers to unplug the relay from the socket in which it is placed. Find the particular relay you want to test. The relay is typically located in a place where larger electric parts are placed. How to test relay any relay voltmeter:
Use a digital multimeter (dmm) to test the resistance between each pole of the relay and the corresponding nc and no contacts for that pole. A relay is switch that utilizes an electrical trigger signal to activate. The main reason for testing a relay is to find, whether it is a good or defective one. The tester should then read zero. In the datasheet you will also get the tolerance value of the coil.

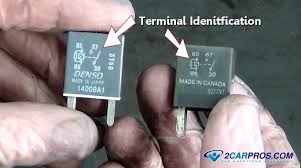

How To Test An Automotive Relay from www.2carpros.com All nc contacts should read infinite resistance to the corresponding pole. Find the particular relay you want to test. Position the relay on the floor, counter or table so the s and m terminal are facing down. A normally open relay will switch power on for a circuit when the coil is activated. Now, while keeping the probes touching the terminals, press or turn the start switch and hold it there. You will need a 12v power supply or ca. The relay may be located under the dashboard or inside the engine compartment in a junction block. Once you have diagnosed the problem we have the oem replacement oven cycling relays that fit your range, or wall oven.
Follow the wires from the starter solenoid to the starting relay.
The tester should read infinity. If turn on the ignition switch, there's a single or a series of weak clicks, you will have to test it for electrical resistance. Using relays allows car makers to cut down on wiring and that cuts down on cost and vehicle weight. With the relay in any position, check if there is continuity between terminals 1 and 2 of the relay. The tester should then read zero. The relay is typically located in a place where larger electric parts are placed. Find the particular relay you want to test. Have a helper turn on the ignition switch while you listen to the noise the starter relay makes. This includes the com terminal, the normally open terminal, and if the relay is a double throw relay, the normally closed terminal. A second thick cable goes from the relay to the component. There are four terminals on the relay. Follow the wires from the starter solenoid to the starting relay. 5 pin relay 5 pin relays provide 2 pins (85 & 86) to control the coil and 3 pins (30, 87 & 87a) which switch power between two circuits.

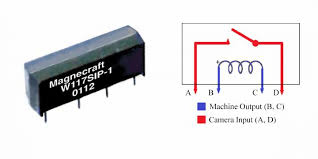

In the relay copper coil and the iron core acts as electromagnet. A normally closed relay will switch power off for a circuit when the coil is activated. Above image shows working of the relay.a switch is used to apply dc current to the load. When the electromagnet is applied with some current it induces a magnetic field around it. How to test relay any relay voltmeter:
Lawn Mower Repair Tractor Zero Turn Ztr How To Test Electrical Relay Switches Youtube from i.ytimg.com Find the particular relay you want to test. The tester should read infinity. You will need a 12v power supply or ca. With the relay removed from the fuse box, the multimeter set to measure dc voltage and the switch in the cab activated, first check to see if there are 12 volts at the 85 position in the fuse box where the relay plugs in (or wherever the relay is located). If turn on the ignition switch, there's a single or a series of weak clicks, you will have to test it for electrical resistance. Once you have diagnosed the problem we have the oem replacement oven cycling relays that fit your range, or wall oven. Test relay switch pull the female wire connector off the male terminal on the side of the relay switch. Relay works on the principle of electromagnetic induction.

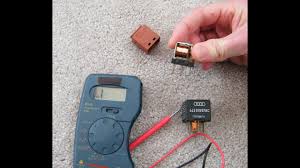

The simplest way of finding this is to use a multimeter with an ohmmeter setting and then measuring the resistance values by checking its terminals.

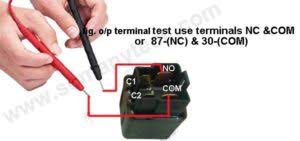

They use a low amperage current to switch a high amperage load. In the datasheet you will also get the tolerance value of the coil. Step 2 remove the appropriate appliance panel to access the thermal overload switch in your appliance. These relays (like the one in the photo in the image viewer) are used in the majority of ford vehicles. Test the relay contacts with an ohmmeter besides the coil terminals, you then can check to see if the the other terminals are good as well. The first step is to test the coil of relay refer to the datasheet to get the coil's resistance. There are four terminals on the relay. Position the relay on the floor, counter or table so the s and m terminal are facing down. Once you have diagnosed the problem we have the oem replacement oven cycling relays that fit your range, or wall oven. It's easy to test a relay using just an ordinary digital voltmeter. Follow the wires from the starter solenoid to the starting relay. With the relay in any position, check if there is continuity between terminals 1 and 2 of the relay. The only tool required to check a relay is a multimeter.
